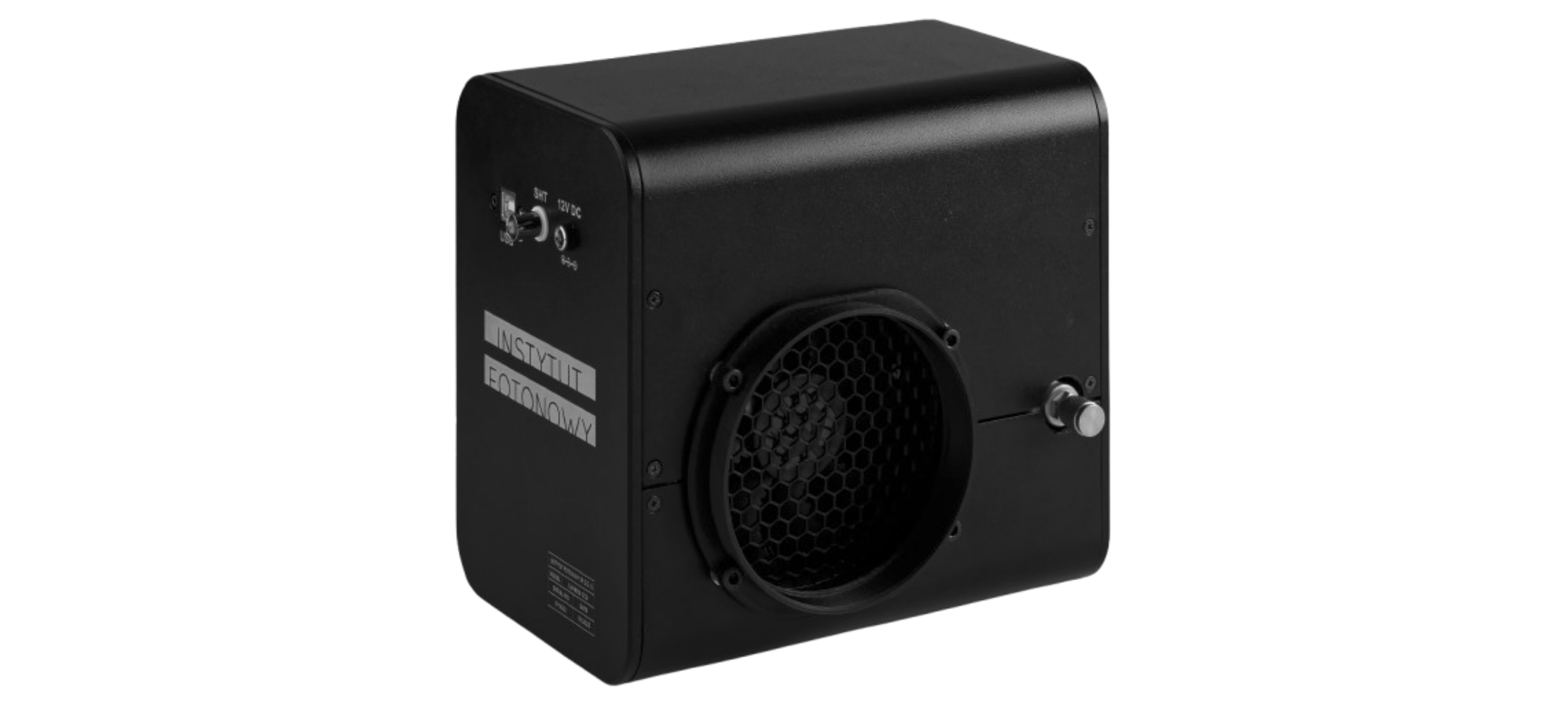

The Cooled CCD Camera is a light detector intended to work with a monochromator in applications where very low light needs to be acquired over extended period of time. Typical applications are Raman Spectroscopy or Raman Optical Activity (ROA) measurements.
- Detector type: CCD array (Teledyne e2v CCD30-11 sensor)
- Number of pixels: 1024(H) x 256(V)
- Wavelength range : 300 – 1000 nm
- Image area: 26.6 x 6.67 mm
- Pixel size: 26 x 26 µm
- Working temperature, TE cooled: -30 deg. C
- External cooling: air cooled, no water needed
- Sensor window: non-fluorescent
- External/Internal shutter trigger
- Integration time: 1 s – 150 s
- Maximum number of internal averages: 100
- Connectivity: USB 2.0
- Dimensions: 200 (H) mm x 140 (W) mm x 210 (D) mm
- Weight: 3.35 kg
- Power supply: 230 V @50 Hz or 115 V @60 Hz
